Taper Lock Sleeve for Lower Pulley

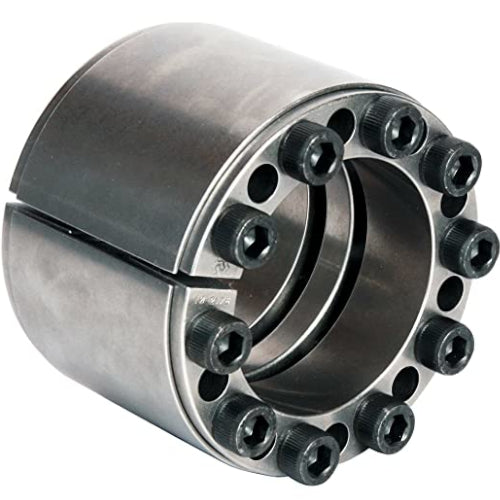

Taper Lock Sleeve

Create a strong, precise, and dependable connection between your engine shaft and redrive pulley with our steel Taper Lock Sleeve. Its keyless, self-centering design provides even clamping pressure around the shaft, helping reduce movement, misalignment, and the need for traditional keys or set screws.

The wide, shallow taper securely locks the pulley or hub in position while allowing the mounted component to remain axially fixed during installation. Six locking screws provide consistent clamping force for demanding high-torque applications.

Features

• Durable steel construction
• Keyless shaft-locking design
• Self-centering for accurate pulley alignment
• Wide, shallow taper for secure engagement
• Six locking screws for uniform clamping pressure
• Designed for high-torque and bending-load applications
• Easier installation and removal than many traditional keyed connections


Specifications for 1" Taper Lock

• Shaft Bore: 1.000 inch
• Outside Diameter: 2.1654 inches
• Overall Length: 1.8110 inches
• Length Through Bore: 1.5750 inches
• Maximum Transmitted Torque: 626 ft-lb
• Locking Screws: Six M6 screws


Specifications for 1-1/8" Taper Lock

• Shaft Bore: 1.125 inch
• Outside Diameter: 2.1654 inches
• Overall Length: 1.8110 inches
• Length Through Bore: 1.5750 inches
• Reccomended Screw Torque: 13 ft-lb
• Maximum Transmitted Torque: 626 ft-lb
• Locking Screws: Six M6 screws

• Assembly Weight: Approximately 1 lb

Always verify shaft diameter, pulley compatibility, installation clearances, and required torque specifications before ordering or installation.
